🔧 Part description

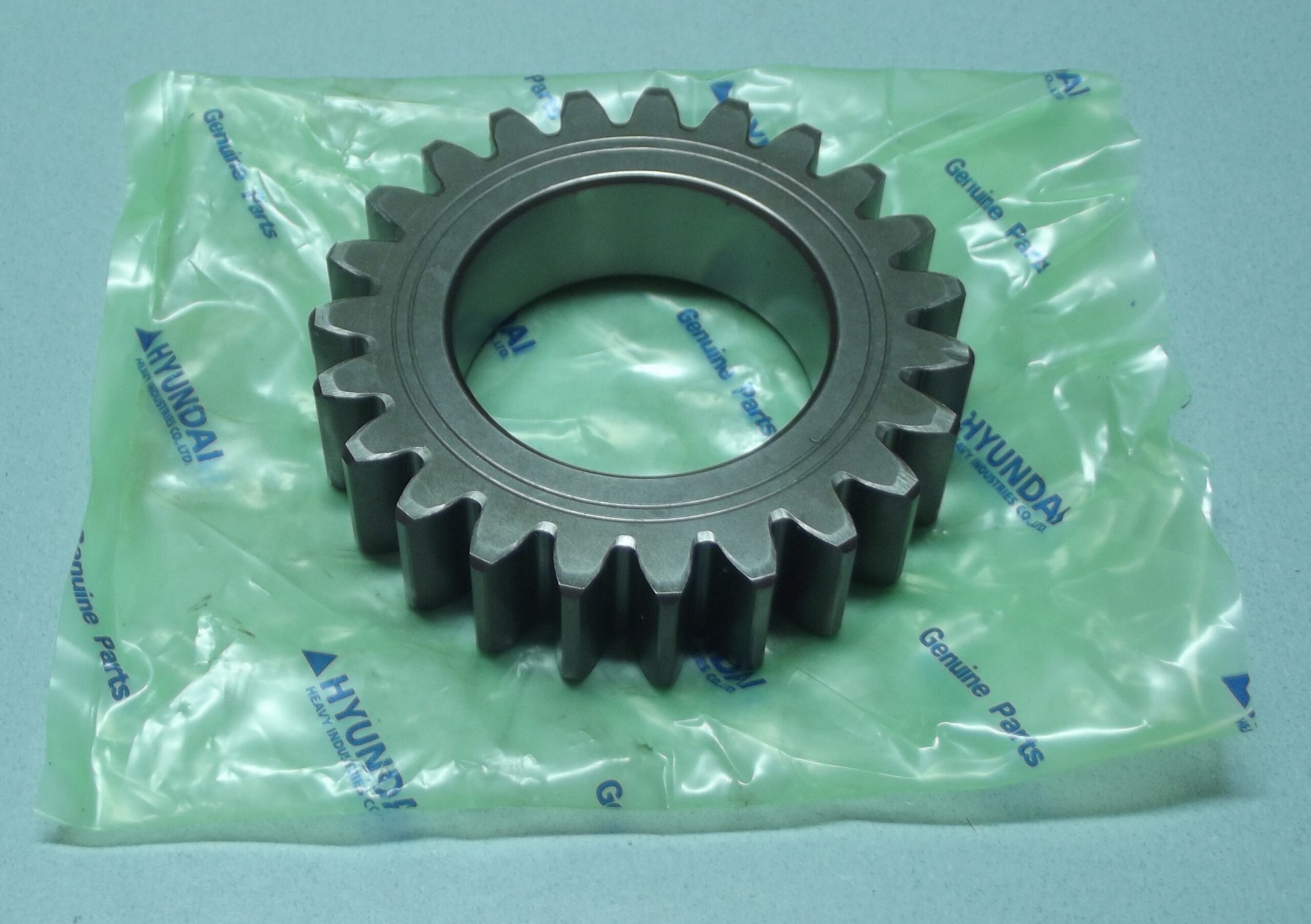

• XKAQ-00137 → Planet Gear (Intermediate Gear / Planetary Gear)

• Works inside the carrier, meshing with the sun gear and ring gear

⚙️ What does it do?

The planet gear:

• Rotates around the sun gear

• Engages with the ring gear to transfer torque and rotational motion to the carrier

• Enables speed reduction and torque multiplication within the planetary gear system

🏗️ Where is it used?

• Planetary gear assemblies

• Swing gearbox (slewing reducer)

• Mounted inside the carrier between sun gear and ring gear

📌 Connection with your other parts

Your Hyundai planetary gear set includes:

• XKAQ-00012 → Sun Gear

• XKAQ-00137 → Planet Gear

• XKAQ-00006 → Ring Gear

• XKAQ-00075 → Carrier

• XKAQ-00111 → Ring Spacer

• XKAQ-00172 → Planet Gear Pin

• XKAQ-00019 → Bearing

• XKAQ-00059 → Thrust Washer

• XKAQ-00041 → Lock Pin

• XKAQ-00055 → Washer / Shim

• XKAQ-00048 → Lock Plate / Retaining Plate

• XKAQ-00136 → Spacer / Washer

• XKAQ-00030 → Needle Bearing

👉 The planet gear (XKAQ-00137) is a critical component that rotates around the sun gear and transmits torque through the ring gear to the carrier, enabling high torque output and precise speed ratios in the planetary gear system.

R290LC-7 / R290LC-7A / R320LC-7 / R320LC-7A
SWING REDUCTION GEAR SPARE PARTS

31E9-01050 / 31E9-01051 / 31E9-01052  SWING REDUCTION GEAR ASSY.

31N9-10151 / 31N9-10152  SWING REDUCTION GEAR
